Forest Editor

Forest Editor

../_images/foresteditorheader.jpg
The Forest Editor is a tool that allows you to quickly create massive amounts of vegetation for your level including patches of trees, forests, and fields of smaller elements such as shrubs and plants. Entire forests can be laid down using simple techniques similar to painting on a canvas, where instead of paint your brushes, lay down 3D models on the terrain.

Interface

To access the Forest Editor press the F8 key, or select it from the drop down menu at the top of the World Editor, by choosing Editors > Forest Editor, or click on the leaf icon to get started.
The Tools Palette on the left of the screen will populate with Forest Editor specific tool buttons represented by icons.
Select ItemSelect an individual object in forestTranslate ItemMove the currently selected objectRotate ItemRotate the currently selected objectScale ItemGrow or shrink the currently selected objectPaintUsed for painting objects on terrainEraseUsed for erasing objects from a terrainErase SelectedUsed to delete the currently selected objects
The Forest Editor has two main panels which will appear on the right of the screen whenever the Forest Editor is active.. On the top is the Forest Editor pane which is divided into two tabs: Brushes and Meshes. The Forest Editor works in a manner similar to painting on a canvas with a brush, except instead of paint the Forest Editor lays down shapes onto the terrain of your level. A Brush in the Torque 3D Forest Editor is composed of one or more mesh elements, which can be alternated between when painting.
The Meshes tab contains a list of all Forest Mesh elements which can be assigned to a brush. A forest mesh is really a datablock which is an information structure that defines a model and the properties which control it in the forest.
On the bottom of the right side of the screen is the Properties pane. The Properties pane displays information about the currently selected element in active tab of the Forest Editor pane.
Before we can use these tools and paint a forest, we need to import a forest mesh and set up a brush.

Creating a Forest Mesh

To create a forest mesh tart by clicking on the Meshes tab in the Forest Editor pane. There are two icons in the top right. The trash bin deletes the currently selected existing mesh, and the leaf icon will adds a new mesh. Click on the Add New Mesh icon.
../_images/FEAddNewMesh.jpg
A file browser should appear. Locate the sample tree mesh file, defaulttree.DAE, which can be located in the game/art/shapes/trees/defaulttree folder.
A new mesh will be added to the tab using the same name as the file you selected:
../_images/FEDefaultTreeAdded.jpg

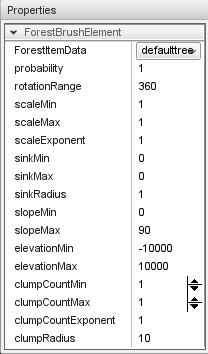

The Properties pane will also be populated with fields and values which describe the new mesh.
../_images/FEElementProperties.jpg
Switch to the Brushed Tab. You will see that the new mesh has also automatically been added to the list of Brushesallow you to select it as the element to paint with.Select the new brush by clicking on its name. The Properties pane will be updated to display the properties of the brush which can be used to randomize the placement and appearance of the selected mesh.

Using a Brush

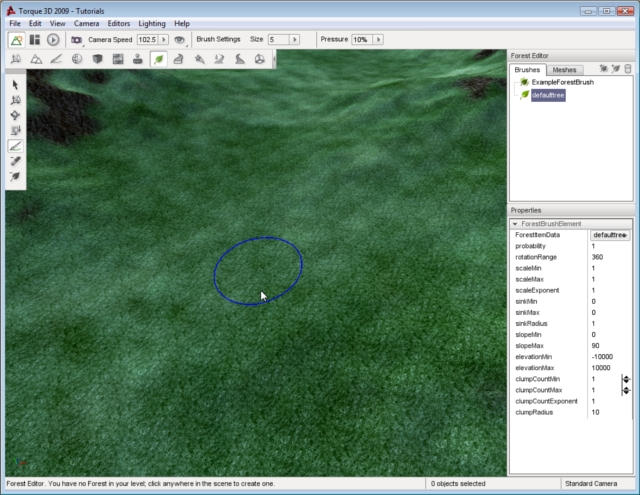

Now that you have an available brush you can begin painting a forest. Select the defaulttree brush from the sample assets. Move the mouse until a blue circle appears on the terrain. This is the outline of your forest brush and shows where you are going paint. To begin painting, left click the mouse and drag it around on the terrain.
../_images/FEBrushCircle.jpg
If this is the first time you have painted a forest in a level then no Forest object exists in the level yet. However, a forest object must exist , so you will be prompted to confirm that you want to add one.
Answering No will abort the forest painting operation. Answering Yes will automatically create a new Forest object, add it to your level, and return you to the level with the brush still active ready to continue painting. You can examine the forest object the same way as any other object using the Object Editor but it has no useful properties to edit so lets skip it for now an continue on with our forest painting operation.
Once again, hold down the left mouse button and drag the mouse over terrain. As you move the brush trees will begin showing up in the wake of your brush. To change the size of your brush, pull the mouse wheel toward you to increase the size or push it away to decrease the size. The blue circle will grow or shrink to indicate your new size.
Note that you do not have the ability to move the camera forward and back in the Forest Editor because of the availability of the brush resizing feature. To move the camera forward and back while using the Forest Editor press the Up Arrow to move forward and the Down arrow to move backward.

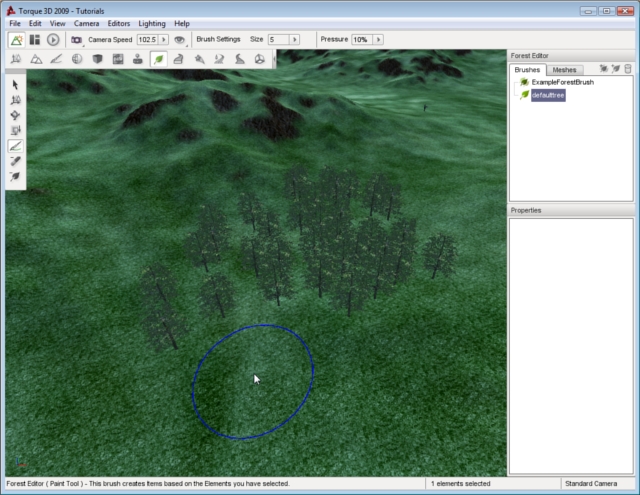

Keep painting until you have a decent patch of trees:
../_images/FETreesPainted.jpg

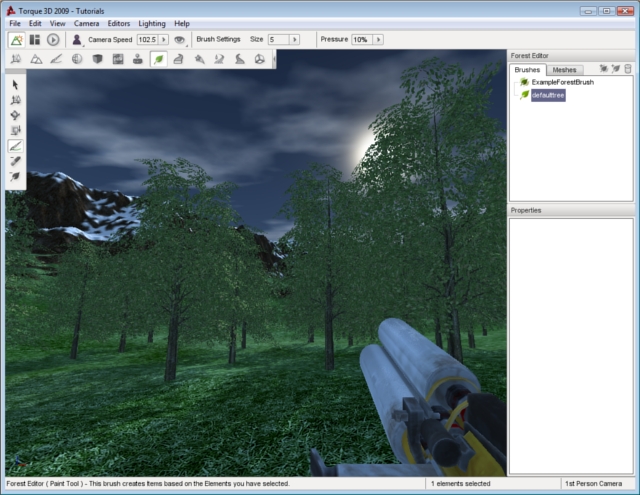

If you move your camera down to ground level, you can see how your forest will look from a player perspective. Youll notice that these are full 3D objects that react to collision, sunlight, and external forces.
../_images/FEGroundView1.jpg

Adjusting Properties

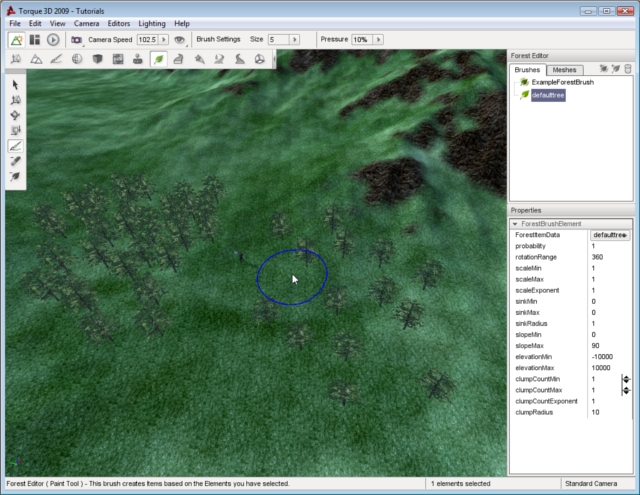

You can edit the properties of a Mesh to adjust how each tree is placed when painting. To adjust the density of mesh placement switch to the Meshes tab then select your defaulttree entry. The Properties pane will update to display the properties of your mesh. Change the radius property from 1 to 2 then press the Enter key.
This radius tells the tool a rough amount of space this item takes up. The value is a decimal value and has no limits, but remember that if the value is too low your trees may overlap, and if it is too high you may not get any trees to appear because the spacing might be larger than the brush itself. Now when you paint you should get more spacing between the placed meshes.
../_images/FESpacedTrees.jpg
As mentioned previously, you can use the Forest Editor to paint additional environmental objects such as rocks, shrubs, or any other 3D model. Since you can paint different types of objects, you might want to organize your brushes and meshes.
In the Brushes tab, click on the Add New Brush Group icon. This will add a new entry in the brush list, called “Brush”. Click on the text of the new brush group. This will allow you to edit the text of the brush. Name the brush group “Trees” then press the enter key. Now, you can click on the defaulttree element and drag it onto the Trees brush group. Switch to the Meshes tab, and click the Add New Mesh tree icon to add a new one. Select game/art/shapes/rocks/rock1.dts as your model.
The rock1 mesh will be added to your Meshes list. Unlike trees, the rock1 mesh is fairly large and somewhat spherical. Spreading out the placement of this mesh will help prevent dense blobs of rocks being placed. In the Mesh properties tab, increase the rock1 radius to 3.

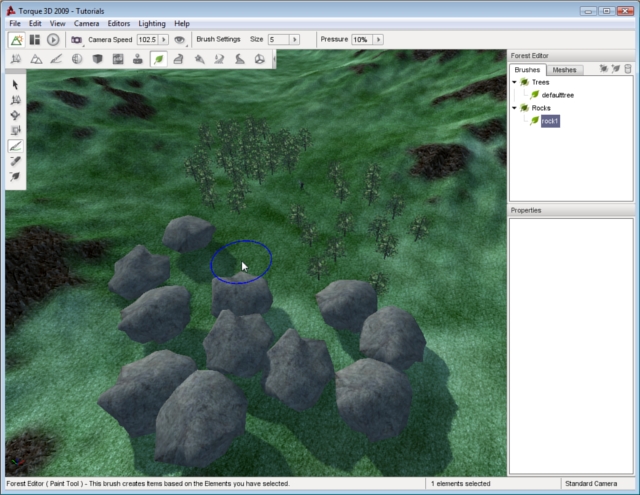

Switch back to the Brushes tab. Create a new brush group and name it Rocks. Your rock1 mesh element should already be in the list, so drag it onto the Rocks brush group to keep things organized. Go ahead and paint down some rocks in your level. You should end up with a patch of huge boulders with fairly even spacing:
../_images/FERocksPainted.jpg

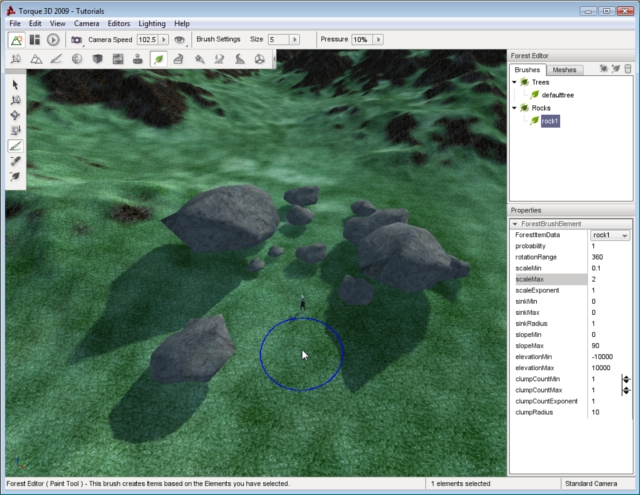

You might have noticed all the boulders are the same size. For added realism, you can adjust the brush properties to randomize its appearance. Select rock1, then decrease the scaleMin and increase the scaleMax. Begin painting a new set of rocks. Now, you will end up with rocks of varying sizes. Some will be as small as your player, while others could be twice the size of the original mesh.
../_images/FEPaintVariedRock.jpg

Editor Settings

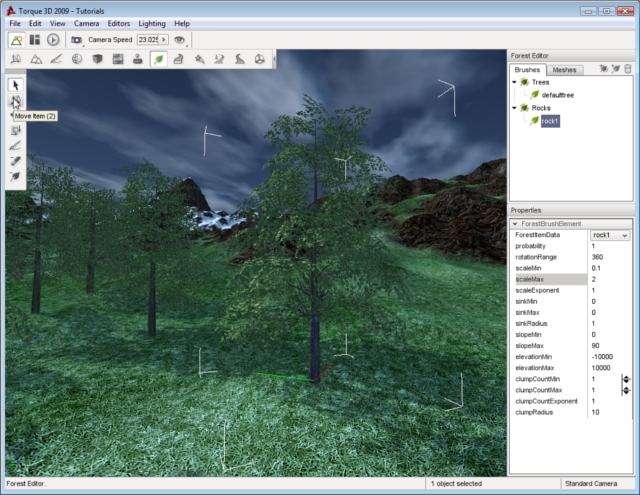

The actions available in the tools palette give you absolute control of your forest placement. The first four tools allow you to adjust individual elements of your forest, such as a single tree. The Select Item tool allows you to select an individual element, which is indicated by a colored axis gizmo appearing on top of the item:
../_images/FESelectTree.jpg

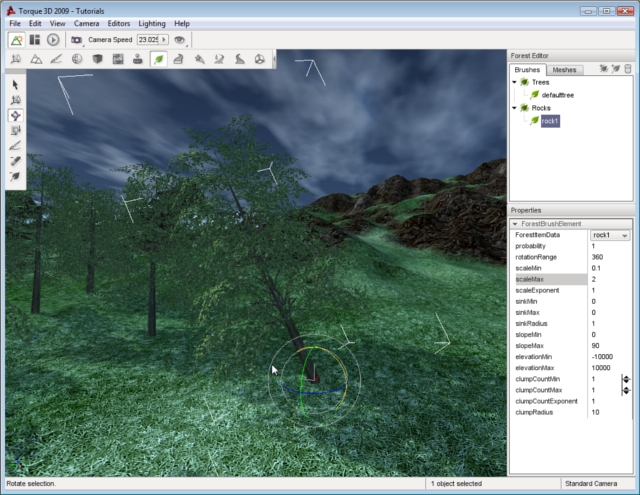

Once you have a tree selected, you can change its location without moving the entire forest. With the tree selected, activate the Move Item tool. The arrows gizmo will appear, allowing you to drag the tree around in the world. The Rotate tool, represented by a spherical gizmo, allows you to adjust the orientation of the tree in 3D space. You can use this to make individual trees lean in a specific direction. The Scale tool can be used to shrink or grow an individual tree. When you need to tidy up a forest, such as removing rogue trees, pressing the delete key when you have a tree selected will remove it from the scene.
../_images/FERotateTree.jpg

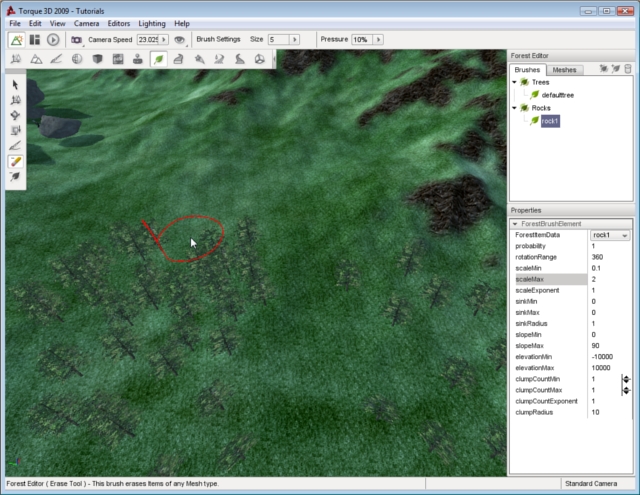

If you need to delete entire sections of a forest, you may not want to delete each tree individually. Instead, you should use the Erase tool. The Erase tool is located directly below the Paint tool. When activated, the circle representing your brush in the world will turn from blue to red when you move your brush over the terrain:
../_images/FEEraseBrush.jpg
Left click your mouse and drag the brush over a section of trees. Any trees under your brush will be removed from the forest object. This is much faster than deleting individual trees. If you want to remove a larger amount of trees such as clearing an area for a road, you can set the width of the brush to a specific width. Locate the Size dropdown on the Tool Settings bar and click on it. A slider will appear so you can increase the circumference of your brush. Set it to something fairly large, like 20.
