River Editor

The Torque 3D World Editor has a complete system for creating rivers and other small bodies of water. The River Editor is built-in WYSIWYG (What-You-See-Is-What-You-Get) editor with real-time feedback, giving you full control over how you would like to your river to appear.

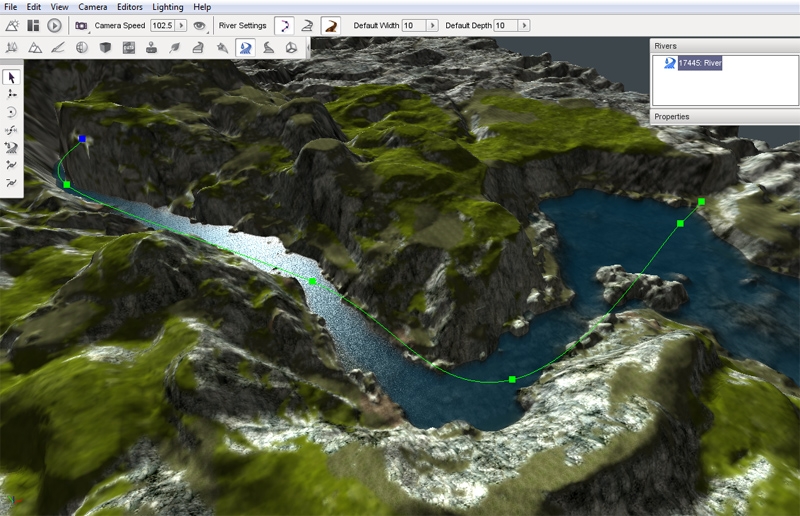

Interface

To access the River Editor you can either activate it from the main menu by selecting Editors > River Editor. Alternatively you can click the River icon from the World Editor Tools Selector Bar.

The editor has two main parts, one where you can add and manipulate the river nodes (control points) for creation, the other for adjusting the river properties to create the river style (depth, width, flow, ripples etc). Whenever the River Editor is active three sections of the screen are updated to contain the editors tool. On the right side of the screen are three panes. At the top is the Rivers pane which contains a list of all the rivers currently in the level, if any are present. In the middle is the River Nodes pane which displays the properties of the currently selected river control point. At the bottom is the Properties Pane which displays the properties of the currently selected river. At the left of the screen the River placement tools will appear and are used to create and modify rivers and their control points. At the top of the screen in the World Editor Tool Settings Bar, a new set of icons will appear when the River Editor is active. These icons and their associated values will enable you to quickly set up the width and depth of the river and modify the editor to show and hide some visual aids which can be used to guide your river placement.

Adding a River

The river is created by placing a series of control points across the terrain which defines the path you would like your river to follow. Each control point, also called a “node”, will give you control of how the river will look at any given point. By adjusting each of these points we can have full control of where our river will go, its size, and its orientation.

The default width and depth of control points can be set using the Default Width and Default Height properties on the Tool Settings Bar at the top of the editor window. Any new rivers will be created using these settings until you change their values again.

To create a new river select the Create River icon from the tool bar then click on the terrain with the left mouse button where you would like to start your river. Move the mouse away from the clicked location to see the results. Each time you click the terrain you will see three things:

1. a green square which represents the river location that you just placed

2. a blue square which represents the next location that will be placed the river if you press mouse button again

3. the surface of the river that will be placed the next time you click the button

Move the mouse to the next point on the terrain that you wish your river to travel to and then click again. Continue moving and clicking until you are finished with the initial placement of your river.

To complete the river placement process press the Esc key. This action will exit the Create River tool leaving your new river selected and ready for adjustments.

To abort a river creation operation without placing a river at all press the Esc key before selecting a second river point. Once a second river point has been placed the only way to remove the river completely is to delete it, as explained later.

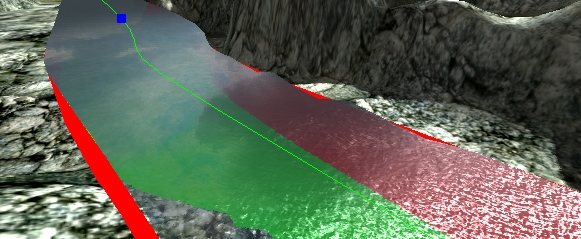

The new River will also show up in the Rivers list at the right top of the screen. You will notice that the river itself is color-coded. These visual aids will be of help in adjusting your river.

REDThe red lines at the edges of the river represent the river bounds. These lines need to be moved so that they are hidden by the terrain river bank to avoid gaps between the edge of the water and the surrounding terrain.GREENThe green surface represents the depth of the river. This surface needs to be adjusted to be just below the terrain at every point in order for underwater views to be correct. Whenever this surface is above the terrain it will cause an “air bubble” between the bottom of the water and the terrain.

The new River may not look correct but with the following set of tools you will be able to adjust the width, depth and path.

Editing a River

The River Editor provides several tools for modifying rivers after they have been created. If at any time you make a mistake with any tool, you can press CTRL+Z to undo it.

Selection Tool

Once you have created your initial river you may need to edit some or all of the control points. This tool will allow you to directly select any created point for further editing. To activate the Selection Tool click its icon on the Tool Selector bar. Note that the River Editor will automatically select this tool when you have finished creating a new river.

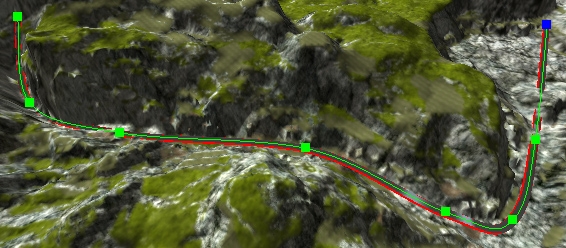

An entire river can be selected by clicking anywhere on a river other than one of its control points. This type of selection will result in the river being highlighted with a “spline”, which is a curved line that runs along the center line of the river, and a series of green squares which represent the rivers control points. There are no operations that can be performed on a river as a whole within the River Editor. Selecting a river allows you to see its centerline and it control points for individual selection and manipulation. To perform operations on the entire river such as moving it to a new location use the Object Editors tools as with any other shape in your level.

Control points can be selected individually to adjust each point as necessary. To select a control point left click on one of the colored squares that represent a rivers control points. A selected control point will turn blue.

Selecting a control point also causes the Properties pane on the right of the screen to be updated to display the current property values of the control point. The Node Properties section will display the position, rotation, width and depth of the selected control point. Values can be directly entered into these fields to modify the point or the Move Tool can be used to manipulate the point using the mouse. A selected control point will turn blue.

Moving a River

If at any time you are unhappy with the placement of a selected River control point you can use the Move Point tool to adjust its position. To activate the Move Point tool click its icon in the Tool Selector bar. The move gizmo will appear. The move gizmo is used to move the river point to a new location. Left mouse click on any arrowhead then drag the mouse to move the point along that arrows axis. Release the mouse button to relocate the control point to that new location. Left mouse click on the colored square at the origin of the axes then drag the mouse to freely move the point to without regard to any axis.

Scaling a River

The width and depth of a river can be directly adjusted at a selected control point by using the Scale Point tool. To activate the Scale Point tool click on its icon on the Tool Selector. The scaling gizmo will appear.

Left mouse click on the colored cube at the end of any axis then drag the mouse while holding the button down to increase or decrease the size of the road along that axis. To adjust the width and depth at the same time left mouse click on the colored cube at the origin of the axes then drag the mouse while holding down the button. Release the mouse button to change the river to that new width and depth. Changing the width and depth of the river in this manner is the main method to make sure that the red edges and the green surface, mentioned above, are concealed by the terrain.

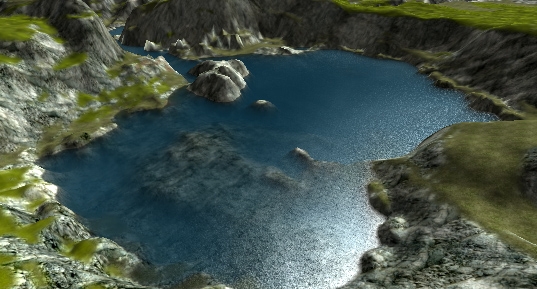

The Scale point tool will allow you to quickly create very wide river sections, even as wide as a small lake, without having to use a WaterBlock.

Rotating a river

The Rotate Tool can be used to rotate a river at any selected control point. To activate the Rotate Tool click its icon on the Tool Selector. The rotate gizmo will appear. Rotating a river at each control in along the path of a river can make a river appear to be flowing downhill as opposed to a flat surface as is created by default.

Adding extra Points

The Insert Point tool can be used to add extra points in a river to create a smoother curve. In order to insert a new point into a river the river must first be selected. See the Selection Tool above for details on how to select a river. To activate the Insert Point tool once a river has been selected click its icon on the Tool Selector bar. To place a new point on the selected river click on the river where you would like the new point to be placed. A new point will be added to the river and will immediately the currently selected point as indicated by the blue square.

Removing Points

The Remove Point tool can be used to delete a control from a river. In order to remove a new point from a river the river must first be selected. See the Selection Tool above for details on how to select a river. To activate the Remove Point tool click its icon on the Tool Selector bar. To remove a control from the selected road point click on the control point. This will remove only the selected point leaving all the others in place. No adjustments will be performed on the other existing control points.

Properties

The Properties pane on the right side of the screen can be used to configure or modify various facets of the river object, such as its flow, colors, underwater effects, etc.

Transform

This section contains properties which control the placement, rotation and scale of the River as a whole.

PositionIndicates the position of entire River in the level.RotationIndicates the rotation of the entire River in the level.ScaleIndicates the scale of the entire River in the level.

River

This section contains properties which control how the River is rendered which in turn will have an effect on the wave settings.

Segment LengthThe river will be divided into segments of this length, in meters.Subdivide LengthRiver segments will be subdivided in a way that each quad (four-sided polygon) is not any wider or longer than this distance in meters.Flow MagnitudeThe magnitude of the force vector applied to dynamic objects that are within the River. This will affect how thing floating or suspended in the water are driven by the flow of the river.Low LOD DistanceSegments of the river at this distance in meters or more will be rendered as a single un-subdivided area without any undulation wave effects.

Water Object

This section contains properties that control the look and action of the water and contains several sub-sections.

DensityAffects the buoyancy of an object entering the water.ViscosityAffects a submerged object’s drag force.Liquid TypeType of datablock used to represent the type of liquid contained in the river (i.e. water, lava, etc.)Base ColorChanges the color of the underwater fog which has the effect of coloring the water surface.Fresnel BiasExtent of Fresnel (reflection level based on viewing angle) affecting reflection foggingFresnel PowerMeasures the intensity of the effect on the reflection, based on fogging.Specular PowerPower used for secularity (lighting reflection) on the water surface (sun only)Specular ColorSpecular color used for the water surface ( sun only )

Waves

This sub-section contains properties that control the undulations on the water. Note: This effect actually moves the vertices of the mesh. This section has further sub-sections for controlling three wave sets, each sub-section is composed of the following properties that define the wave set.

Wave DirA vector describing the direction the waves flow towards the river banks.Wave SpeedSpeed of the wave undulation.Wave MagnitudeHeight of the wave.Overall Wave MagnitudeThis master parameter affects the depth of all the wave subsets, like a global wave height parameter.Ripple TextureThe Normal map used for simulating the surface ripples.

Ripples

This sub-section contains properties that control the animation that simulates the effect of ripples bouncing off the river bank. This animation is performed using normal map to represent the ripples. This section has further sub-sections for controlling three ripple sets, each sub-section is composed of the following properties that define the ripple set.

Ripple DirA vector that modifies the surface ripple direction.Ripple SpeedControls the ripple speed.Ripple Tex ScaleIntensifies the affect of the surface ripples by scaling the texture.Ripple MagnitudeIntensifies the ripple effect.Overall Ripple MagnitudeThis parameter affects the depth of all the ripple subsets, like a global ripple intensity variable.Foam TexThe texture used to render the ripple effect.

Reflect

This section contains properties that control the rendering of surface reflections:

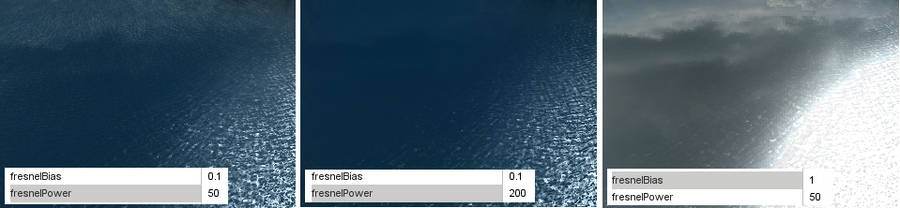

CubeMapCubemap to use instead of the default reflection texture, which is the current sky, if Full Reflect is turned off. Handy if you have not yet set up a sky for your project.FullReflectEnables dynamic reflection rendering, which causes the water surface to reflect the current sky, if available.Reflect PriorityAffects the sort order of reflected objects.Reflect Max Rate MsAffects the sort time of reflected objects.Reflect Detail AdjustScale up or down the detail level for objects rendered in a reflection.Reflect Normal UpThe reflection normal.Use Occlusion QueryTurn off reflection rendering when occluded.Reflect Text SizeTexture size used for the reflections.

Underwater Fogging

This section contains properties that control how the underwater view appears.

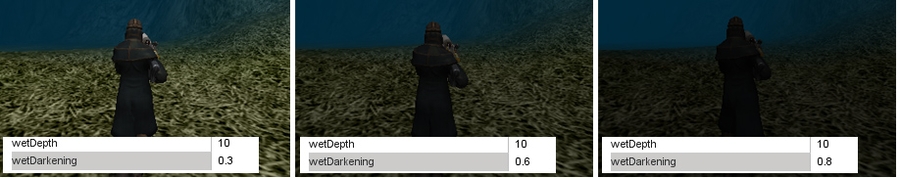

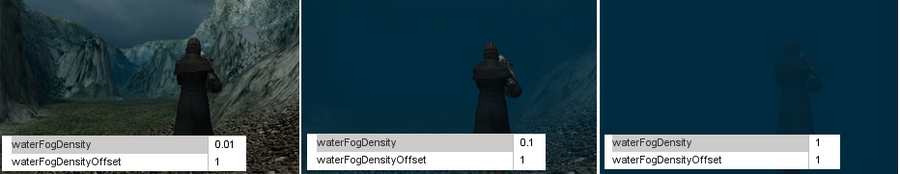

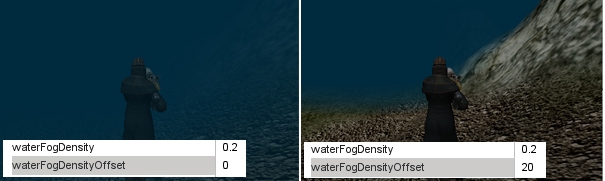

Water Fog DensityThe intensity of the underwater fogging.Water Fog Density OffsetThe offset distance before the fogging occurs.Wet DepthThe depth in world units at which full darkening will occur, giving a wet look to objects underwater.Wet DarkeningThe refract color intensity scaled to the depth of the player (wetDepth). The deeper under the water you go, the darker it will get.

Misc

Other uncategorized properties.

Depth Gradient TexTexture for the gradient as the players moves deeper.Depth Gradient MaxMaximum depth for the gradient texture.

Foam

Foam OpacityOverall foam opacity.Foam Max DepthThe depth that the foam will be visible from underwater.Foam Ambient LerpAn RGB color value that interpolates linearly between the base foam color and ambient color. This prevents bright white colors be viewable during situations such as Night.Foam Ripple InfluenceIntensity of the foam effect on ripples.

Distortion

This section contains properties that control how the water distorts the under water terrain when viewed from above.

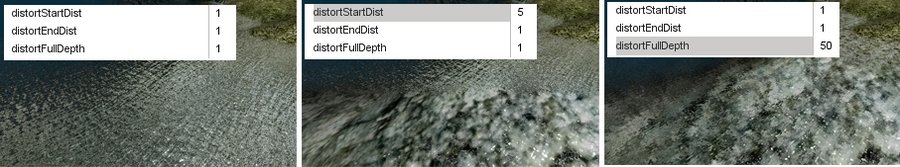

Distort Start DistDetermines the start of the distortion effect from the camera.Distort End DistMax Distance that the distortion algorithm is performed. Lower values will show more of the distortion effect.Distort Full DepthSets the scaling down value for the distortion in shallow water. The lower the value the more the distortion will be applied to the shallow area.

Basic Lighting

This section contains properties that control the basic lighting effects on and in the water:

ClarityOpacity or transparency of the water surface.Underwater ColorChanges the color shading of objects beneath the water surface

Sound

This section contains properties that control sound under the water.

Sound AmbienceAmbient sound environment for when the listener is submerged.

Editing

This section contains properties that control whether the river can be edited.

isRenderEnabledToggles whether the object is rendered on the client.isSelectionEnabledToggles whether the object can be selected in the tools.hiddenToggles whether the object is visible.lockedToggles whether the object can be edited.

Mounting

This section contains properties that control whether the river can be mounted to another world object, for example a sewer pipe or a cave.

mountPIDPersistentID of object we are mounted to.mountNodeNode we are mounted to.mountPosPosition where object is mounted.mountRotRotation where object is mounted.

Object

This section contains properties that control whether the river object is persistent in the world.

internalNameInternal name of this object.parentGroupGroup to which this object belongs.classClass to which this object belongs.superClassSuperClass to which this object belongs.

Persistence

This section contains properties that control whether the river object is persistent in the world.

canSaveWhether the object can be saved to the mission file.canSaveDynamicFieldWhether dynamic properties are saved at runtime.persistentIDUnique ID of this object.
